KOMAL S-Series, It is standard series, mean basic package, only can pack single track, only can use transparent film.

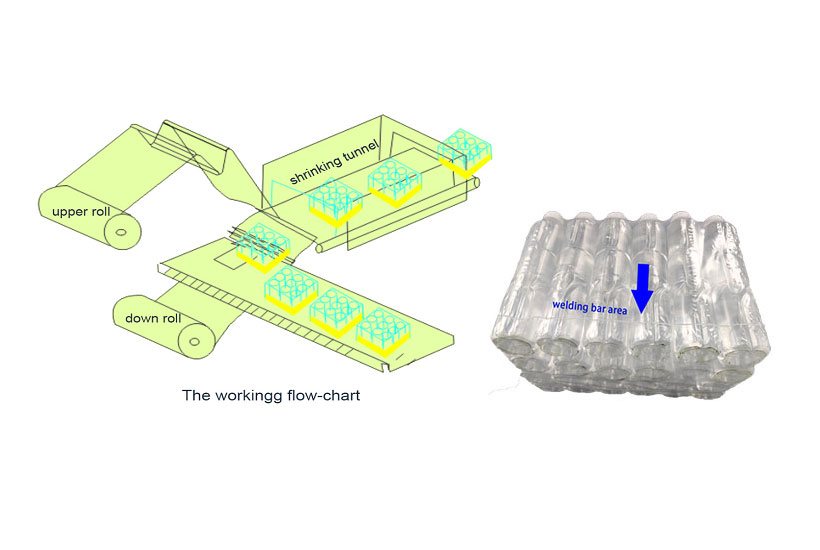

Weld Bar Sealing Method, featured with two rolls of film uploading, upside one roll of film and bottom one roll of film,

The two are joined to form a film curtain. When product is ready, pushed into the curtain by pneumatic structure, Welding Bar

(Sealing Bar) comes down to form a sleeve on the collation of product at the same time cutting the film and rejoining the curtain

for the subsequent pack.

It is designed for stacking and shrink wrapping of flat rectangular objects, such as Bottles, cartons, soap cakes, toothpaste,

reams of paper, shoe boxes, tin cans and many others. Capacity, 10cycles/minute, 15cycles/minute, 20 cycles/minute.

especially designed for small and medium-sized enterprises.

 including:

S10 Fully Automatic 90 degree infeed  shrink wrapper with multi-lanes. maximum speed of 10 cycles/min, it is KOMAL’s lowest speed machine.

S15 Continuous Motion bundle shrink wrapper with Inline Infeed with Multiple lanes. maximum speed of 15 cycles/min, it is KOMAL’s medium speed machine

S20 Full automatic stretch film inline infeed shrink wrapper with multi-lanes, also called automatic linear packing machine, maximum speed of 20 cycles/min, it is KOMAL’s high speed machine

Specification:

KOMAL S-series Machine model	S10	S15	S20
shrinkage film material	PE
Film shrinkage thickness	0.03-0.15mm	0.07-0.1mm	0.07-0.1mm
Film shrinkage tunnel temperature	160 – 260°can adjustable
Mian facility power	18kw	25kw	30Kw
Packing capacity	10cycles/min	15cycles/min	20cycles/min
wrappage max size	L600×W400×H350mm	L420 *W280 *H350 mm	L420×W280×H350mm
facility external size	L5050×W3300×H2100mm	L8400×W1250×H2200mm	L12000×W1250×H2200mm
facility weight	1200kg	2000KG	2500kg
