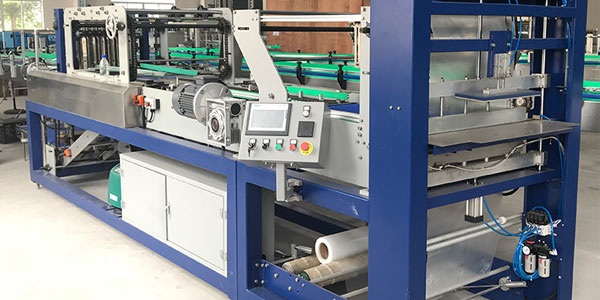

S15 Welding Bar Machine

The KOMAL S-series Package : Safe- Versatile- Better Pack – Less Energy- Easy to use- Economical. Continuous Motion bundle shrink wrapper with Inline Infeed with Multiple lanes.

maximum speed of 15 cycles/min, it is KOMAL’s medium speed machine

KOMAL S-Series, It is standard series, mean basic package, only can pack single track, only can use transparent film.Model:S15. capacity:15bags/min.price range is USD11,500-USD13,500/set.
Inquiry

Detailed Description

  1. frequency converter speed adjust,two segment convey device.
  2. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
  3. Proximity switch control film length
  4. Touch screen, PLC system greatly increase facility movement reliability.

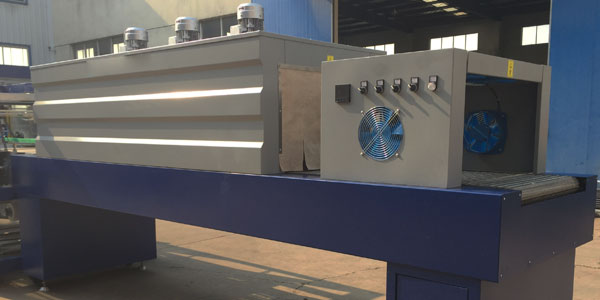

  5. Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
  6. Super big wind-volume cooling system, ensure quickly get into shape .
  7. Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
  8. Frequency limitless speed adjust convey belt frame.
  9. convey belt height can make according client requirement, adjust range:±100mm
  10. Wing stainless steel heating system, endurance
  11. 11. Meet with product instant stop requirement product-bearing rack device ensure production line consistency.

Basic Configuration:

  1. SIEMENS：PLC controlling system
  2. SIEMENS：Touch Screen
  3. Taiwan Airtac pneumatic component 1set
  4. Taiwan Teco transducer 2set
  5. Stainless steel wing heating tube 12pcs
  6. China-USA cooperation Teflon convey belt.
  7. Shanghai HEMEI motor and Zhenjiang Taili worm derailleur.
  8. South Korea Autonics photoelectrical switch, approach witch.

Technical Parameter

1. Wrappage max size:L420×W280×H350mm

2. shrinkage film material: PE

3. shrinkage film thickenss:0.07-0.1mm

4. thermo shrinkage tunnel max temperature: 160 – 260° adjust at will

5. max output per minute:13 bag

6. facility power：25Kw

7. actual power：20Kw/h

8. pressure requirement: 380V/50-60HZ

9. facility weight: 2000kg

10. air pressure: 0.6-0.8mpa

11. working noise:≤65db

12. import bottle convey belt width: 541mm

Application Condition and Requirement:

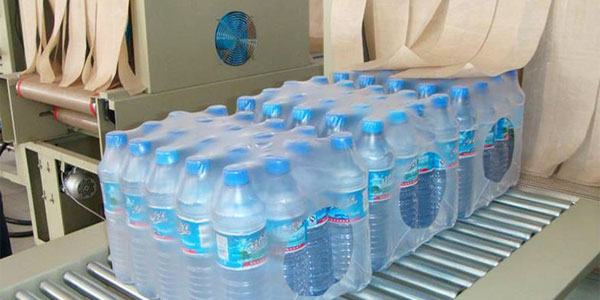

1.package type：

1.1 130/500/550/600ML big bag：4×6, 4×5 .

small bag:3×4，3×5 four type of package.

1.2 1L, 1.5L, 2L, 2.5L big bag：3×3，3×4.

small bag:2×2，2×3 four type f package

2. Regarding can, we suggest adopt to package with tray , pack steadily.

3. package speed：13-15bag/min.
